12.8V100Ah LiFePO4 Battery Module for DIY, ready to use, four in one

  • 5 - 49 Pieces
    $168.00
  • 50 - 99 Pieces
    $160.00
  • >=100 Pieces
    $150.00
Battery Type:
Cylindrical Module
Nominal Capacity:
100Ah
Nominal Voltage:
12.8V
Samples:
Module , 100Ah , 12.8V
$168.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Shipping:
Support Sea freight · Land freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 100 101 - 1000 1001 - 10000 >10000
Est. Time(days) 14 21 30 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 2000 Pieces)

More

Graphic customization (Min. Order: 2000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
12 months
Application:
Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
Battery Size:
12.8V100Ah
Brand Name:
Beian
Certification:
UN38.3
Model Number:
BF60320100A
Place of Origin:
China
Weight:
8kg
Nominal Voltage:
12.8 Volt
Nominal Capacity:
100Ah
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Port
Shenzhen,Hongkong
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 100 101 - 1000 1001 - 10000 >10000
Est. Time(days) 14 21 30 To be negotiated
Video Description
Product Description

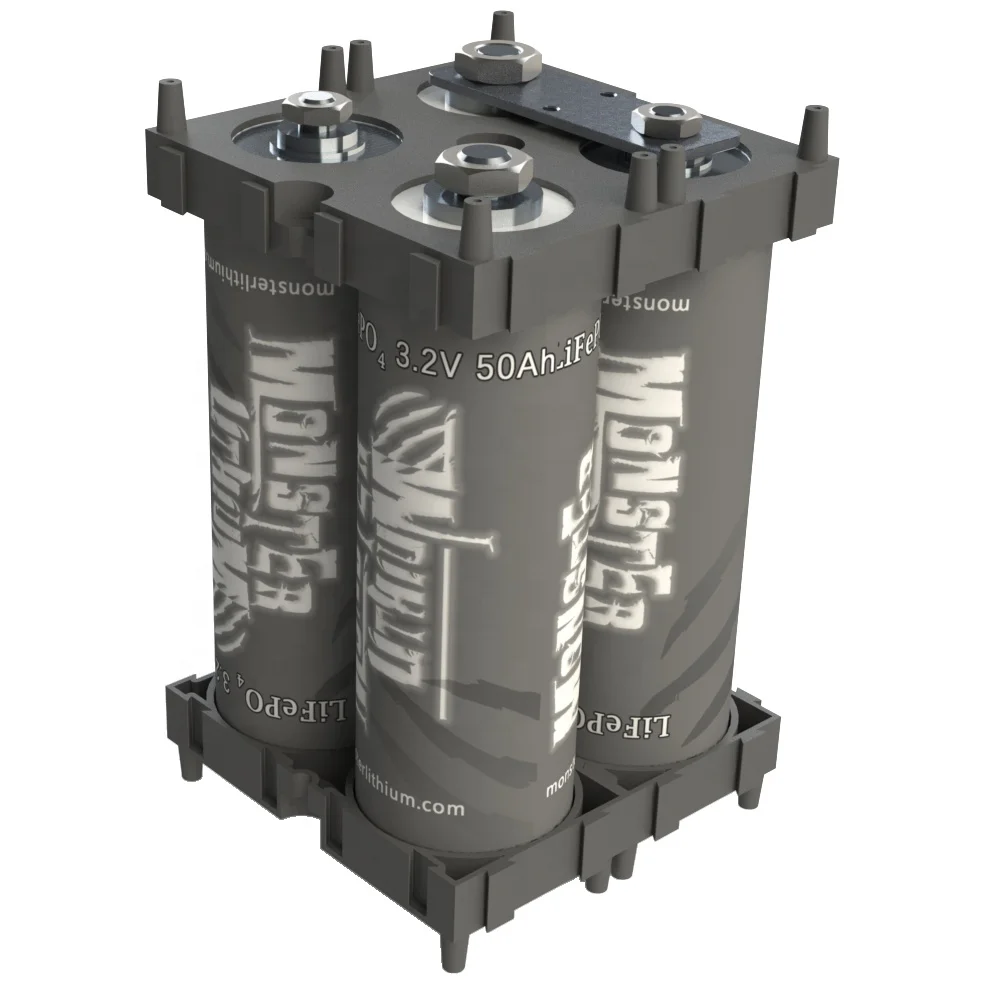

Module Show

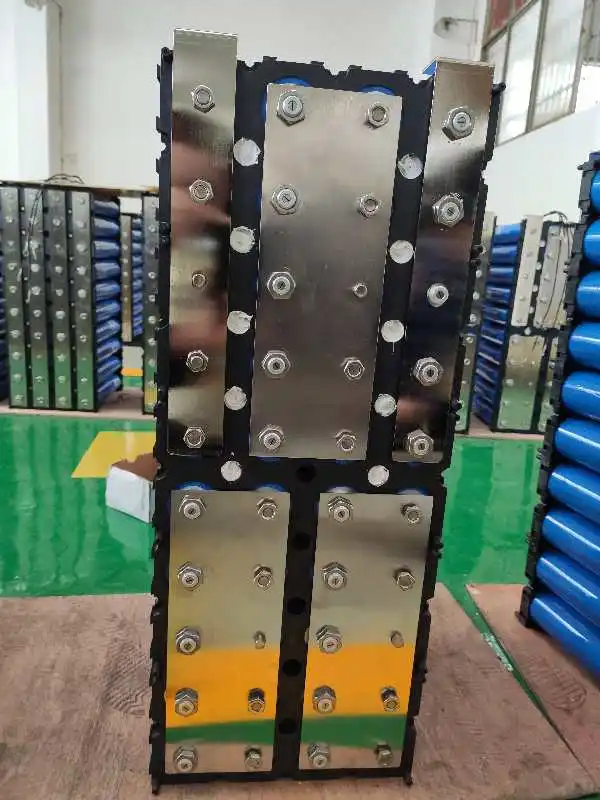

12.8V250Ah module
5 cells in parallel connection to 250Ah then 4 in series to 12.8V
24V 250Ah module

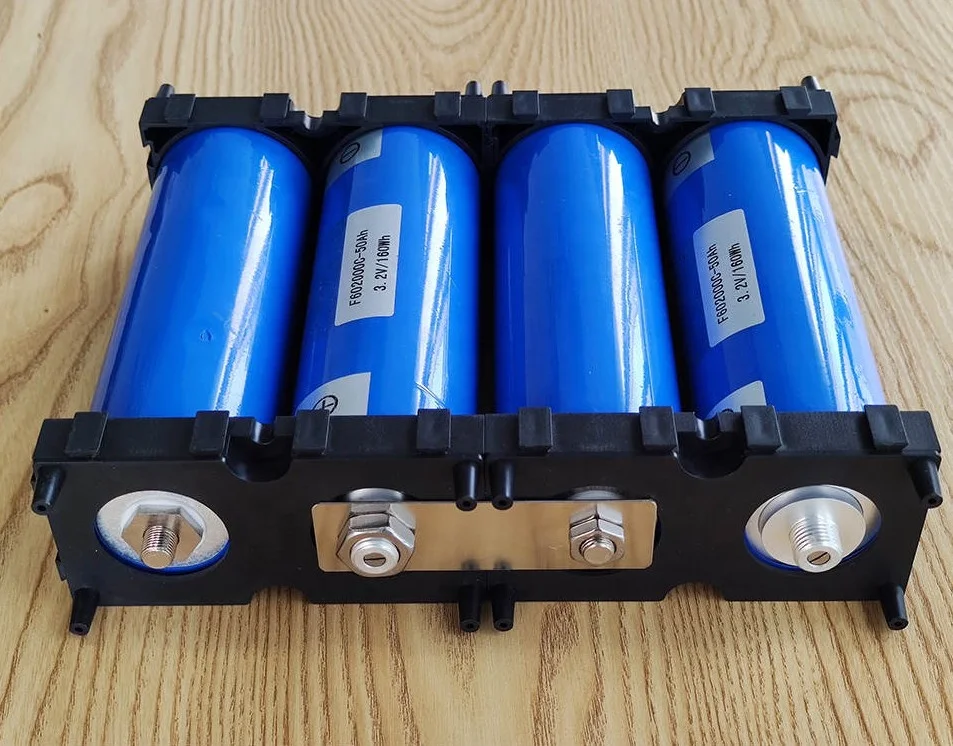

Assembly by screw. flexible assembly

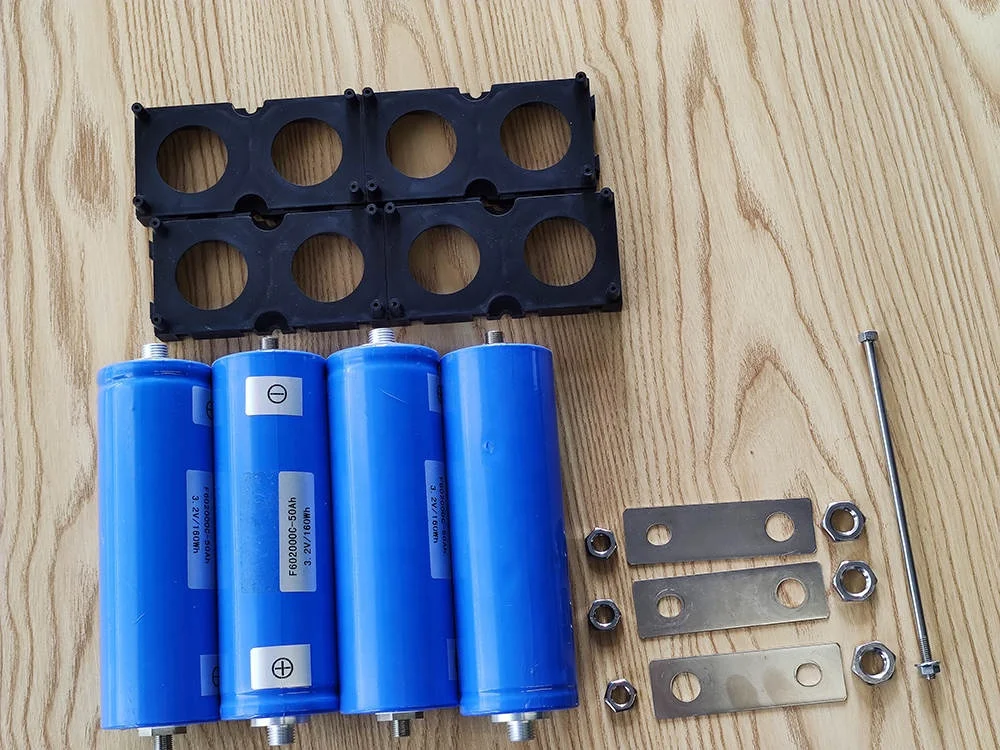

The busbar, plastic holder, screw, assembly components that we can provide.
Specification
Item
Specification
Nominal Voltage
12.8V
Nominal Capacity(@40A 25℃, CC-CV charge)
100Ah
Energy(@40A 25℃, CC-CV charge)
320Wh
Energy Density
145Wh/kg
Size
φ130*130*330mm
Weight
7.9±0.2kg
Max Charge Protection Voltage
14.6V
Cut-off Discharge Voltage
10.0V(≥ 0℃)
8.0V(< 0℃)
Max Continuous Discharge Current
100A
Max Continuous Charge Current
100A
Max pluse charge current
1.5C (15℃～45℃, 50%SOC) ≤30S
Max pluse discharge current
3C (15℃～45℃, 50%SOC) ≤30S
Internal Impedance(1 Hz AC, 10%SOC, 25℃)
<0.6mΩ
Cycle life at 1C charge and 1C discharge, 100%DOD,25℃)
≥2000 to 80% initial capacity


Working Temperature
Charge
0℃~+50℃,≤85%RH
Not allow to charge when lower 0 ℃
Discharge
-20℃~+55℃,≤90%RH
Recommend discharge current ≤25A @ < 0 ℃
Storage Temperature
-10℃~+30℃,<85%RH
Warranty
One Year
